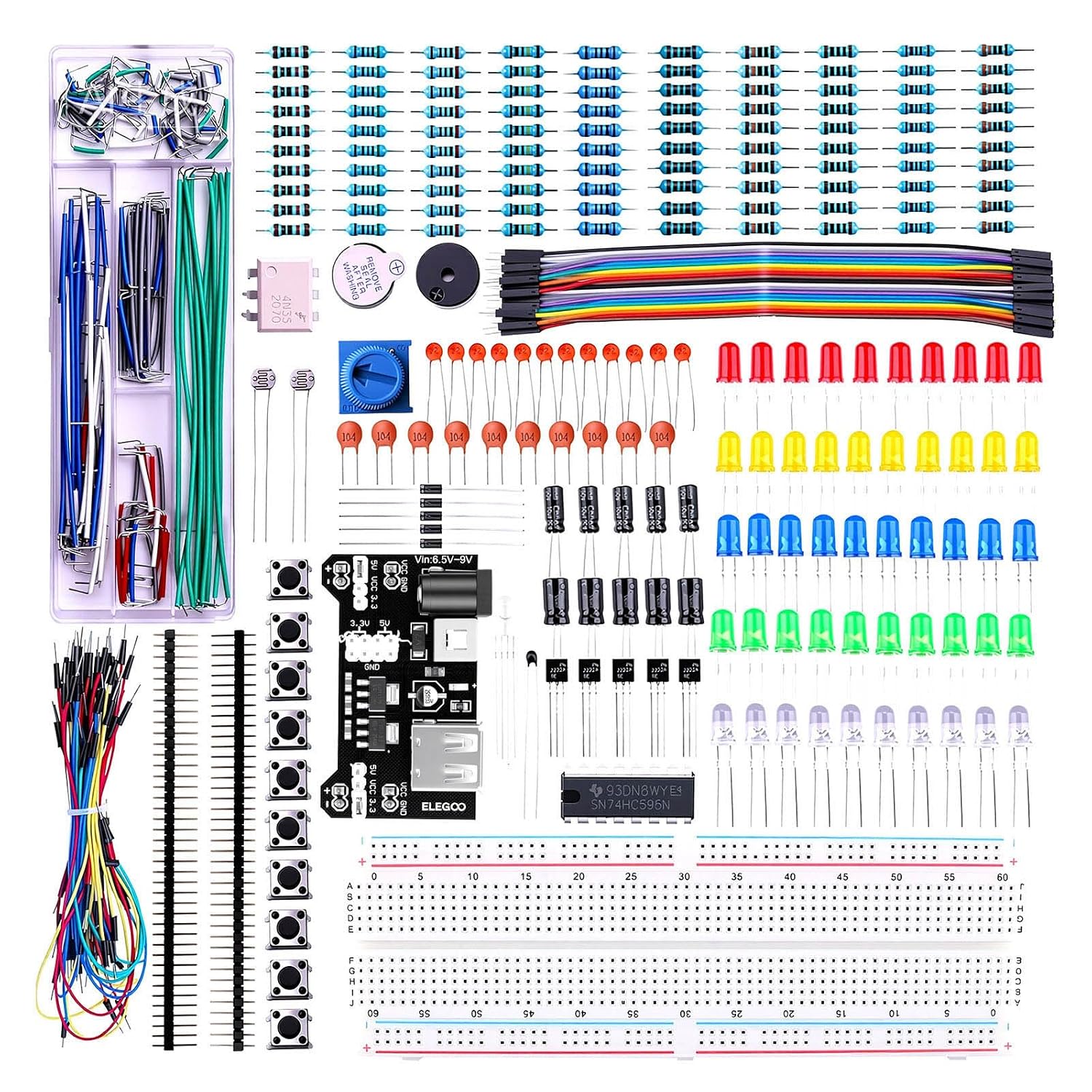

ELEGOO Upgraded Electronics Fun Kit w/Power Supply Compatible with Arduino
BHD1190
Quantity:
Order today to get by 7-14 business days
Delivery fee of BHD 2. Free for orders above BHD 20.
Imported From: United States
At BOLO, we work hard to ensure the products you receive are new, genuine, and sourced from reputable suppliers.
Every product in the BOLO catalogue is sourced through our Verified Global Supply Network of verified sellers, authorized distributors or directly from the manufacturer.
Each product undergoes thorough inspection and verification at our consolidation and fulfilment centers to ensure it meets our strict authenticity and quality standards before being shipped and delivered to you.
If you ever have concerns regarding the authenticity of a product purchased from us, please contact Bolo Support. We will review your inquiry promptly and, if necessary, provide documentation verifying authenticity or offer a suitable resolution.
Your trust is our top priority, and we are committed to maintaining transparency and integrity in every transaction.
While we strive to display accurate information, variations in packaging, labeling, instructions, or formulation may occasionally occur due to regional differences or supplier updates. For detailed or manufacturer-specific information, please contact the brand directly or reach out to BOLO Support for assistance.
Unless otherwise stated, all prices displayed on the product page include applicable taxes and import duties.
BOLO operates in accordance with the laws and regulations of Bahrain. Any items found to be restricted or prohibited for sale within the Bahrain will be cancelled prior to shipment. We take proactive measures to ensure that only products permitted for sale in Bahrain are listed on our website.
All items are shipped by air, and any products classified as “Dangerous Goods (DG)” under IATA regulations will be removed from the order and cancelled.
All orders are processed manually, and we make every effort to process them promptly once confirmed. Products cancelled due to the above reasons will be permanently removed from listings across the website.
74HC595
The 74HC595 shift register can expand output control while using only a few microcontroller pins, making it useful for LED and multi-output experiments. This example is based on the 74HC595. The datasheet refers to the 74HC595 as an "8-bit serial-in, serial or parallel-out shift register with output latches; 3-state." In other words, you can use it to control 8 outputs at a time while only taking up a few pins on your microcontroller. You can link multiple registers together to extend your output even more.
4N35
The 4N35 optocoupler transfers a signal through an internal LED and phototransistor, helping demonstrate electrical isolation between input and output circuits
PN2222 NPN Transistor
The PN2222 NPN transistor can be used as a switch to control compatible loads that require more current than a microcontroller I/O pin should supply directly. A small transistor like the PN2222 can be used as a switch that uses just a little current from the digital output to control the much bigger current of the motor. The transistor has three leads. Most of the electricity flows from the Collector to the Emitter, but this will only happen if a small amount is flowing into the Base connection. This small current is supplied by the digital output.
Electrolytic Capacitor
An electrolytic capacitor is a type of capacitor that uses an electrolyte to achieve a larger capacitance than other capacitor types. An electrolyte is a liquid or gel containing a high concentration of ions. Almost all electrolytic capacitors are polarized, which means that the voltage on the positive terminal must always be greater than the voltage on the negative terminal. The benefit of large capacitance in electrolytic capacitors comes with several drawbacks as well. Among these drawbacks are large leakage currents, value tolerances, equivalent series resistance and a limited lifetime.
Ceramic Capacitor
A ceramic capacitor uses a ceramic material as the dielectric. Ceramics were one of the first materials to be used in the production of capacitors, as it was a known insulator. Ceramic capacitors are usually made with very small capacitance values. Ceramic capacitors are also very small in size and have a low maximum rated voltage. They are not polarized, which means that they may be safely connected to an AC source. Ceramic capacitors have a great frequency response due to low parasitic effects such as resistance or inductance.
1N4007 Diode
A diode is a device which allows current flow through only one direction. That is the current should always flow from the Anode to cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above. For 1N4007 Diode, the maximum current carrying capacity is 1 A it withstand peaks up to 30 A. Hence we can use this in circuits that are designed for less than 1 A. The reverse current is 5 µA which is negligible. The power dissipation of this diode is 3 W. Applications of Diode: ● Can be used to prevent reverse polarity problem ● Half Wave and Full Wave rectifiers ● Used as a protection device ● Current flow regulators
Component List:
- 1 × Power Supply Module; WARNING: Pls. do not use the voltage higher than 9 V
- 1 × 830 tie-points Breadboard; 1 × 65 Jumper Wire; 140 × Solderless Jumper Wire; 20 × Female-to-Male Dupont Wire;
- 2 × Pin header (40pin); 1 × Precision Potentiometer; 2 × Photoresistor; 1 × Thermistor; 5 × Diode Rectifier (1N4007);
- 5 × NPN Transistor (PN2222); 1 × IC 4N35; 1 × IC 74HC595; 1 × Active Buzzer; 1 × Passive Buzzer; 10 × Button (small);
- 10 × 22 pf Ceramic Capacitor; 10 × 104 Ceramic Capacitor; 5 × Electrolytic Capacitor (10 µF 50 V);
- 5 × Electrolytic Capacitor (100 µF 50 V); 10 × White LED; 10 × Yellow LED; 10 × Blue LED; 10 × Green LED; 10 × Red LED;
- 1 × RGB LED; 10 × Resistor (10R); 10 × Resistor (100R); 30 × Resistor (220R); 10 × Resistor (330R);
- 10 × Resistor (1K); 10 × Resistor (2K); 10 × Resistor (5K1); 10 × Resistor (10K); 10 × Resistor (100K); 10 × Resistor (1M);
