Description:
What's in the box

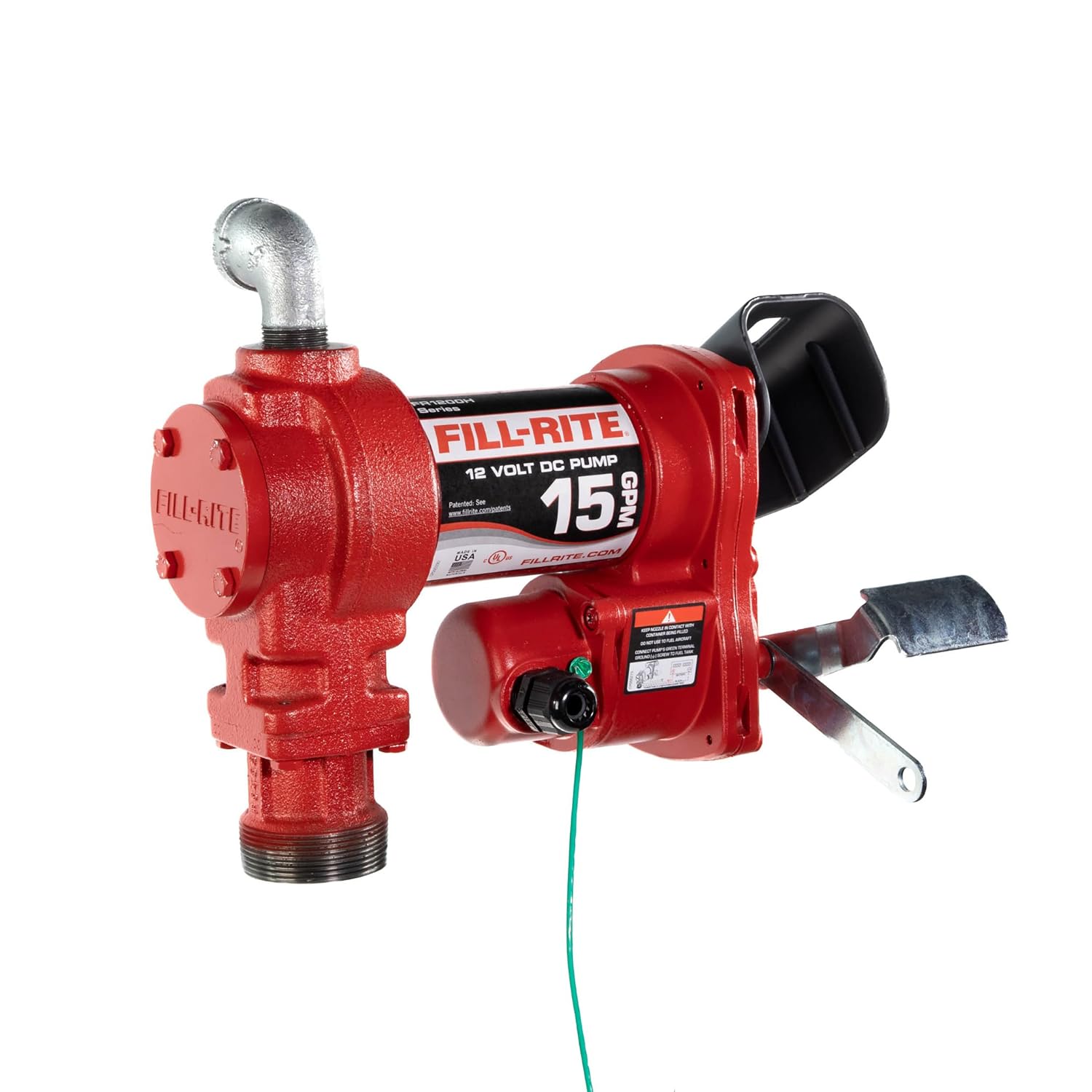

The FR1204H is a 12V 15 GPM fuel transfer pump that designed as a "pump only" model, but does include a 3/4" street elbow, ground wire, (2) wire nuts, and a roll of PTFE tape. This model can be used to pump gasoline, diesel, kerosene, ethanol blends up to 15%, methanol blends up to 15%, and bio-diesel up to B20.
Details:
| Brand | Fill-Rite |
|---|---|
| Fit Type | Vehicle Specific Fit |
| Vehicle Service Type | Truck |
| Item dimensions L x W x H | 6.5 x 13 x 9.48 inches |
| Material | Cast Iron |
Visit the Fill-Rite Store
Fill-Rite FR1204H 12 V 15 GPM Fuel Transfer Pump (Pump Only Model) | Gasoline, Diesel, Kerosene, Ethanol Blends, Methanol Blends, & Biodiesel
BHD27733
Quantity:
Order today to get by 7-14 business days
This item qualifies for free delivery
Imported From: United States
At BOLO, we work hard to ensure the products you receive are new, genuine, and sourced from reputable suppliers.
Every product in the BOLO catalogue is sourced through our Verified Global Supply Network of verified sellers, authorized distributors or directly from the manufacturer.
Each product undergoes thorough inspection and verification at our consolidation and fulfilment centers to ensure it meets our strict authenticity and quality standards before being shipped and delivered to you.
If you ever have concerns regarding the authenticity of a product purchased from us, please contact Bolo Support. We will review your inquiry promptly and, if necessary, provide documentation verifying authenticity or offer a suitable resolution.
Your trust is our top priority, and we are committed to maintaining transparency and integrity in every transaction.
While we strive to display accurate information, variations in packaging, labeling, instructions, or formulation may occasionally occur due to regional differences or supplier updates. For detailed or manufacturer-specific information, please contact the brand directly or reach out to BOLO Support for assistance.
Unless otherwise stated, all prices displayed on the product page include applicable taxes and import duties.
BOLO operates in accordance with the laws and regulations of Bahrain. Any items found to be restricted or prohibited for sale within the Bahrain will be cancelled prior to shipment. We take proactive measures to ensure that only products permitted for sale in Bahrain are listed on our website.
All items are shipped by air, and any products classified as “Dangerous Goods (DG)” under IATA regulations will be removed from the order and cancelled.
All orders are processed manually, and we make every effort to process them promptly once confirmed. Products cancelled due to the above reasons will be permanently removed from listings across the website.
Welcome To The New H Series!!!
In July of 2020, Tuthill released the H Series revision to all Fill-Rite 600, 1200, 2400, 4200, and 4400 series models. The H Series replaces the older G series version of the pump. With the updated version, a removable junction box to make installation easier was added and a more robust heavy duty switch lever was installed to ensure the pump withstands the abuse of rough operating environments. While there was no change to the performance specifications, Tuthill is extending their protection coverage from 2 years to a limited lifetime policy (details can be found in the new Tuthill policy located on each product page). Finally, customers will have access to 4 new complete system based models that were created....
- FR1220HDSQ --- 12V 15 GPM Fuel Transfer Pump, 3/4" Automatic Nozzle (Green Cover), 3/4" x 18' Discharge Hose, 3/4" Multi-Plane Swivel, 1" Elbow, 1" x 34" Telescoping Suction Pipe, & 20' Power Cable
- FR1220HDSFQ --- 12V 15 GPM Fuel Transfer Pump, 3/4" Automatic Nozzle (Green Cover), 3/4" x 18' Discharge Hose, 3/4" Multi-Plane Swivel, 3/4" Filter Head, 3/4" Pipe Nipple, 10 Micron Particulate Filter, 1" Elbow, 1" x 34" Telescoping Suction Pipe, & 20' Power Cable
- FR4220HDSQ --- 12V 20 GPM Fuel Transfer Pump, 1" Automatic Nozzle (Green Cover), 1" x 18' Discharge Hose, 1" Multi-Plane Swivel, 1" Elbow, 1" x 34" Telescoping Suction Pipe, & 20' Power Cable
- FR4220HDSFQ --- 12V 20 GPM Fuel Transfer Pump, 1" Automatic Nozzle (Green Cover), 1" x 18' Discharge Hose, 1" Multi-Plane Swivel, 1" Filter Head, 1" Pipe Nipple, 10 Micron Particulate Filter, 1" Elbow, 1" x 34" Telescoping Suction Pipe, & 20' Power Cable
1200 Series Repair Kits
KIT120RKG
Primary pump repair kit for 1200 series pumps.
KIT120ARM
Motor repair kit for 1200 series pumps.
KIT120BD
Bio-diesel conversion kit for 1200 series pumps.
KIT120NB
Nozzle boot kit for 1200 series pumps.
Pump Technology 101
Rotary Vane
Rotary vane technology is a positive displacement (fixed volume) pump design that utilizes an offset rotor with sliding vanes that rotates on a motor shaft inside the pump. The vanes move outward against the pump cavity to form individual chambers (positive displacement). Fuel enters into the pump cavity through the inlet port on the rotor side where the vanes are fully extended. As the rotor turns, the vanes collapse inward creating the pressure that forces the fuel into the discharge port and through the hose.
Advantages of rotary vane technology…..
- Increased suction lift
- No performance loss due to vane wear
- Self-priming ability
- Easy maintenance
- Consistent performance
Suction Lift
The maximum suction lift rating refers to the maximum vertical distance that a pump can lift fuel out of a tank. On rotary vane pumps, suction lift is created due to the offset of the rotor in the pump cavity, which increases the volume in the chamber between the vanes, thus lowering the pressure on the pump’s inlet. Atmospheric pressure, which is now greater than the inlet pressure in the pump, moves the fuel from the tank to the pump cavity (self-priming).
Suction lift is determined by the pump specifications, the type of fuel, and the altitude of the location where the pump is installed. Higher altitudes reduce the suction lift of a pump due to the reduced atmospheric pressure.
To achieve maximum suction lift, the inlet plumbing should be as straight as possible with no elbows or bends in the line. Accessories, such as filters, should not be installed on the inlet side of the pump. Valves should be set with minimum spring pressure and must contain a pressure relief valve.
Discharge Pressure
Discharge pressure refers to the systems pressure while dispensing. It effects flow-rate based on the pump’s design - the lower the discharge pressure, the higher the flow-rate.
Variables that increase discharge pressure/decrease flow-rate:
- Adding accessories (filters, measuring devices, swivels, etc…)
- Changing accessories (increasing the length or decreasing diameter of hose)
- Dispensing fuel above the pump (the higher the discharge point is above the pump the lower flow-rate)p
- Pumping higher viscosity fluids (Fill-Rite pumps are designed to pump at a viscosity no greater than kerosene)
To lower discharge pressure/increase flow-rate, remove or limit restrictions. Examples include, moving from a 10 micron filter to 30 micron filter, changing from a 800 series to a 900 series or TT10 series, limiting the use of elbows in system design, or increasing the diameter of your discharge hose/pipe.
